DR PHANTOM

[/vc_column_text][vc_column_text]Article No.: 11 0017X

5-Groove Wedge and DR Phantom
according to ASTM E2737

Performance Evaluation and Long-Term-Stability Test
for DDA systems according to latest standards and
specifications[/vc_column_text][/vc_column][vc_column width=“1/3″][/vc_column][vc_column width=“1/3″][vc_empty_space][vc_gallery interval=“3″ images=“1225,1226,1227″ img_size=“full“ onclick=“img_link_large“ custom_links_target=“_blank“][/vc_column][/vc_row][vc_row][vc_column][vc_empty_space][vc_accordion active_tab=“1″ collapsible=“yes“ type=“custom“ skin=“light“][vc_accordion_tab title=“Discription“ show_icon=“yes“ icon=“fas fa-angle-down“][vc_row_inner][vc_column_inner][vc_column_text]

Digital Detector Array Performance Evaluation and Long-Term-Stability Tests

The standard ASTM E2737 describes the evaluation of DDA systems for industrial radiology. It is intended to ensure that the evaluation of image quality, as far as this is influenced by the DDA system, meets the needs of users, and their customers, and enables process control and long term stability of the DDA systems.
These tests are to monitor the system performance for degradation and to identify when action needs to be taken if the system degrades by a certain level – i.e. influenced after repairs, hardware-/ software upgrades.

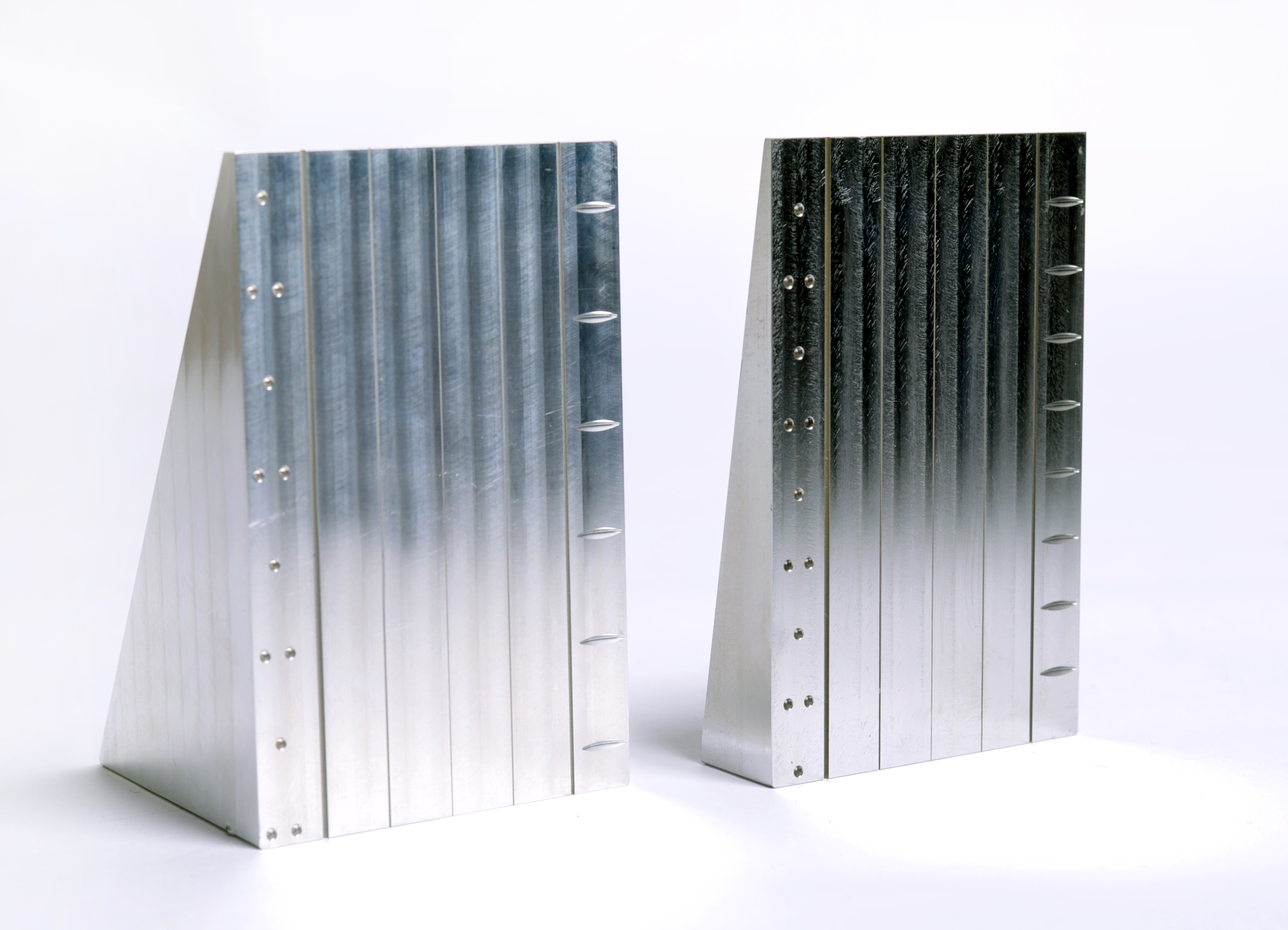

5-Groove Wedge
Simple to set-up and use universal test wedge according to ASTM E2737 – available in two versions. Selection shall base on the most stringent material used in the application.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_accordion_tab][vc_accordion_tab title=“Specification“ show_icon=“yes“ icon=“fas fa-angle-down“][vc_row_inner][vc_column_inner][vc_column_text]DR Phantoms
These DR Phantoms are designed for special applications, but also proposed for monitoring DDA performance.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width=“1/2″][vc_column_text]Duplex Plate Phantom
Described in ASTM E2737,
but also for special inspection set-up dimensions, only.

Two flat plates made of the material used in the application
or of the most stringent material, and with the thickness
suitable to the object to be inspected:
Bottom Plate
Top Plate, half size of Bottom Plate[/vc_column_text][/vc_column_inner][vc_column_inner width=“1/2″][vc_column_text]DR Phantom TAM – Aviation
Special design for Aerospace Industries –
turbine blade inspection.

Step wedges with 7 steps – acc. to TAM …
IQI plaques acc. to TAM …/ ASTM E1742
made of the material used in the application or of the most
stringent material i.e. Titanium and Inconel
Duplex Wire Type IQI – ASTM E2002/ ISO 19232-5
BAM snail[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_accordion_tab][vc_accordion_tab title=“Types“ show_icon=“yes“ icon=“fas fa-angle-down“][vc_row_inner][vc_column_inner width=“2/3″][vc_column_text]Types:[/vc_column_text][/vc_column_inner][vc_column_inner width=“1/3″][vc_column_text]Article No.:[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width=“2/3″][vc_column_text]5-Groove Wedge

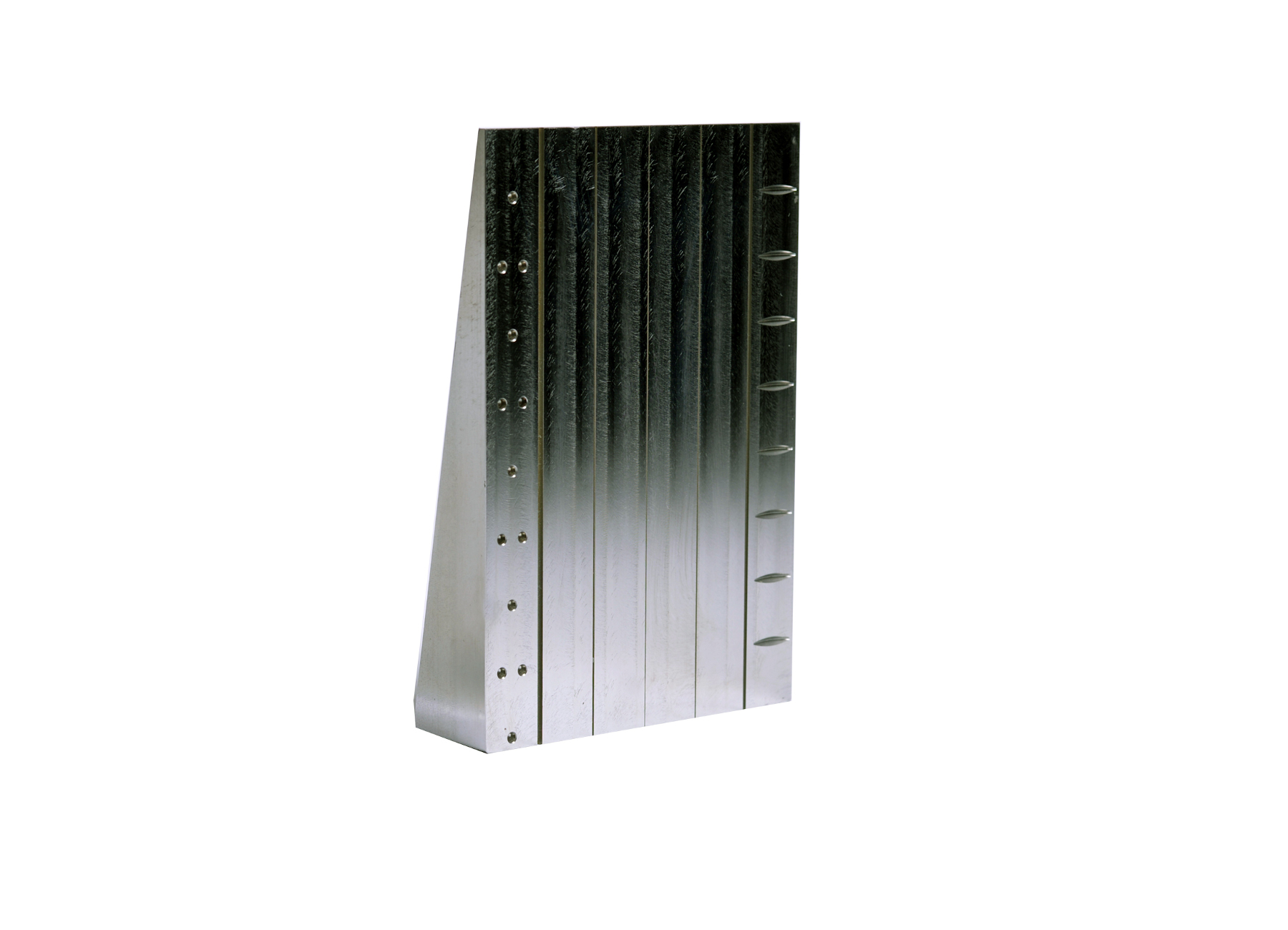

Heavy Metal
made of stainless steel[/vc_column_text][/vc_column_inner][vc_column_inner width=“1/3″][vc_column_text]11 00170[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width=“2/3″][vc_column_text]5-Groove Wedge

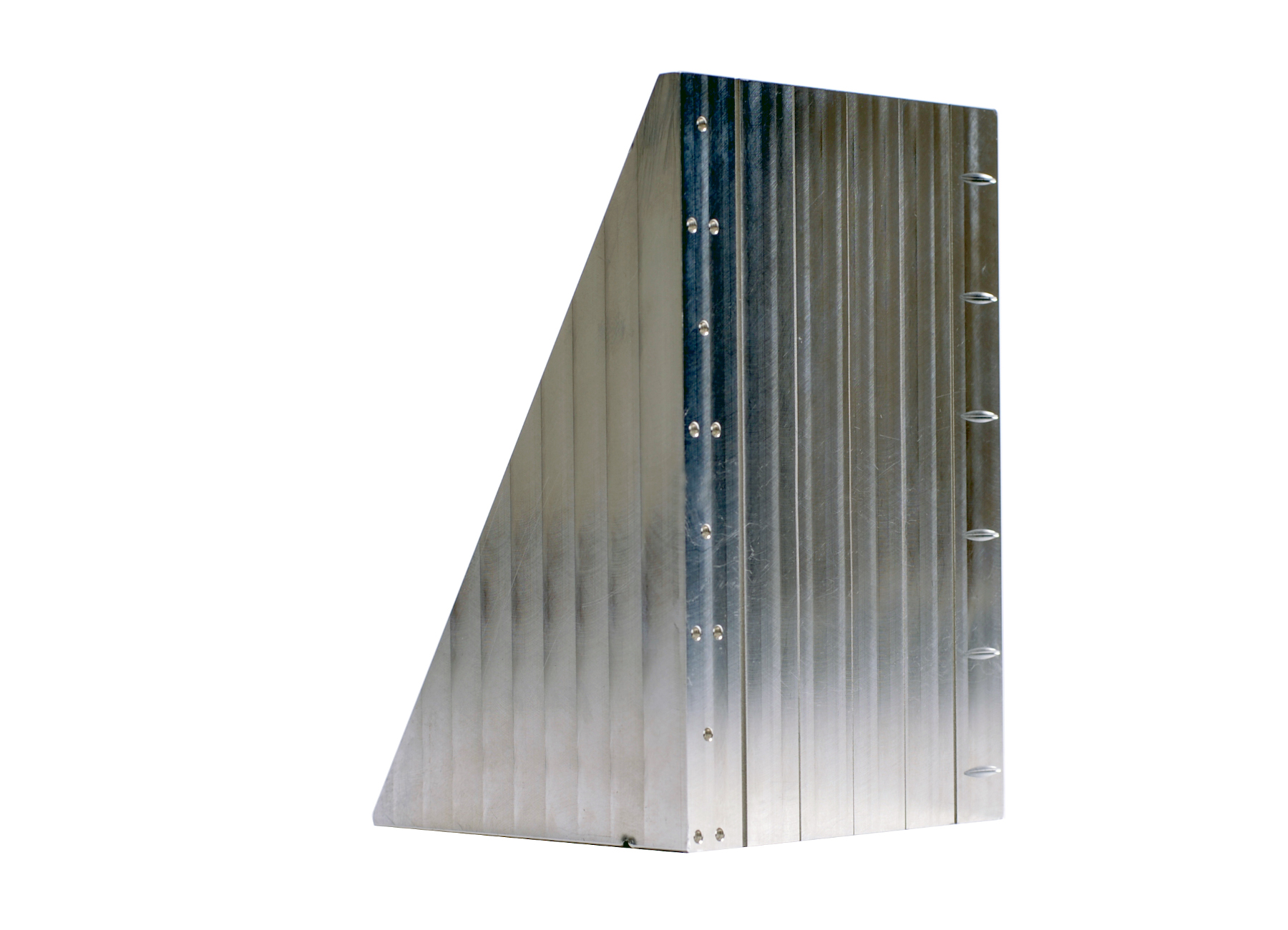

Light Metal
made of aluminum[/vc_column_text][/vc_column_inner][vc_column_inner width=“1/3″][vc_column_text]11 00171[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_accordion_tab][vc_accordion_tab title=“Accessories“ show_icon=“yes“ icon=“fas fa-angle-down“][vc_row_inner][vc_column_inner][vc_column_text]You can find accessories on the leaflet[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_accordion_tab][vc_accordion_tab title=“Leaflets“ show_icon=“yes“ icon=“fas fa-angle-down“][vc_row_inner][vc_column_inner][vc_column_text]leaflet German: DR PHANTOM
leaflet English: DR PHANTOM[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_accordion_tab][/vc_accordion][vc_empty_space][/vc_column][/vc_row]
