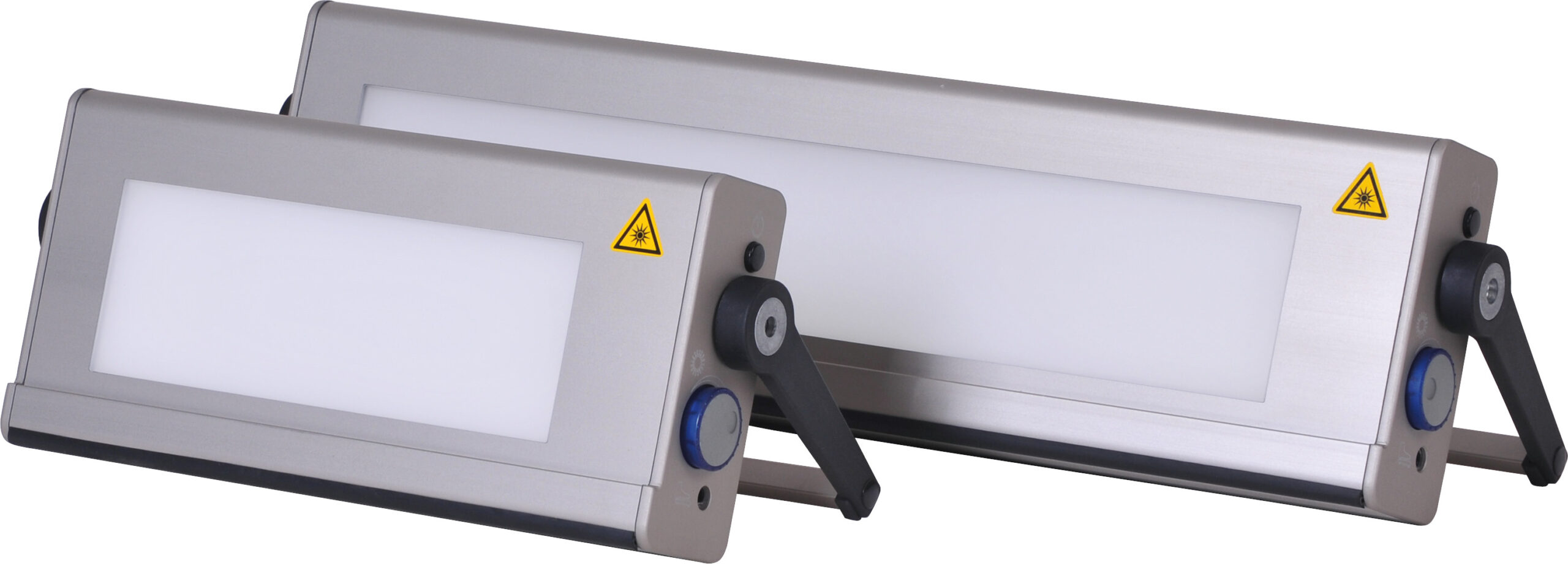

KOWOLUX M series mobile LED film viewers for NDT X-ray films

The KOWOLUX M viewers are specially designed for mobile application and use in mobile labs where besides volume and weight, dust and humidity are a matter. Of course, these viewers are also suitable for daily film viewing in-house as a low-price alternative to the KOWOLUX X models. Due to the very high efficiency of the used PowerLEDs no cooling fan is required.
The housing made of a strong anodized aluminum profile is completely closed and therefore dustproof. Despite its lightweight design, a secure stand of the viewer is granted and with the carrying handle the viewing angle can be adjusted. Standard film formats can be viewed with no attachable mask due to the contact edge in the housing.

KOWOLUX M Serie
Viewers with plug-in foot switch or operating plug-in switch (two way function), film contact edge and an attachable masks system.

Housing:
Screen glass:
Uniformity factor:
Divergence factor:
Color temperature:
Lifetime of LEDs:
Brightness control:
Control range:
Power Supply:

aluminum profile, anodized
thermally cured, translucence 95%
g > 0.8
σ’ > 0.9
5.000 K
> 40,000 h
1 – with footswitch and operating plug
< 0.2 … 100%
88 … 264 V / 47 … 63 Hz

Types:

Article No.:

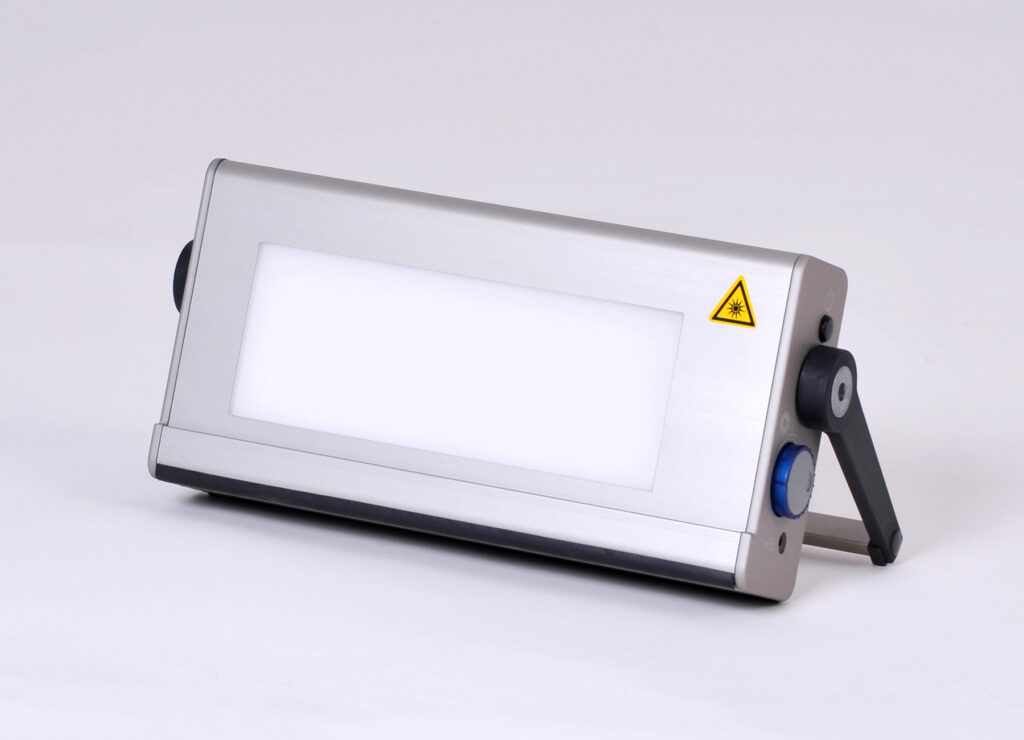

KOWOLUX M1

Viewing area:
Luminance/ Density:
Rated power:
Dimensions/ Weight:

80 x 225 mm for films 10×24 cm
160,000 cd/m² – D 4.20
70 W
325 x 62 x 150 mm – 2.9 kg + 0.5 kg power supply

13 40400

KOWOLUX M1 plus

Viewing area:
Luminance/ Density:
Rated power:
Dimensions/ Weight:

80 x 225 mm for films 10×24 cm
200,000 cd/m² – D 4.30
90 W
325 x 62 x 150 mm – 2.9 kg + 0.5 kg power supply

13 40401

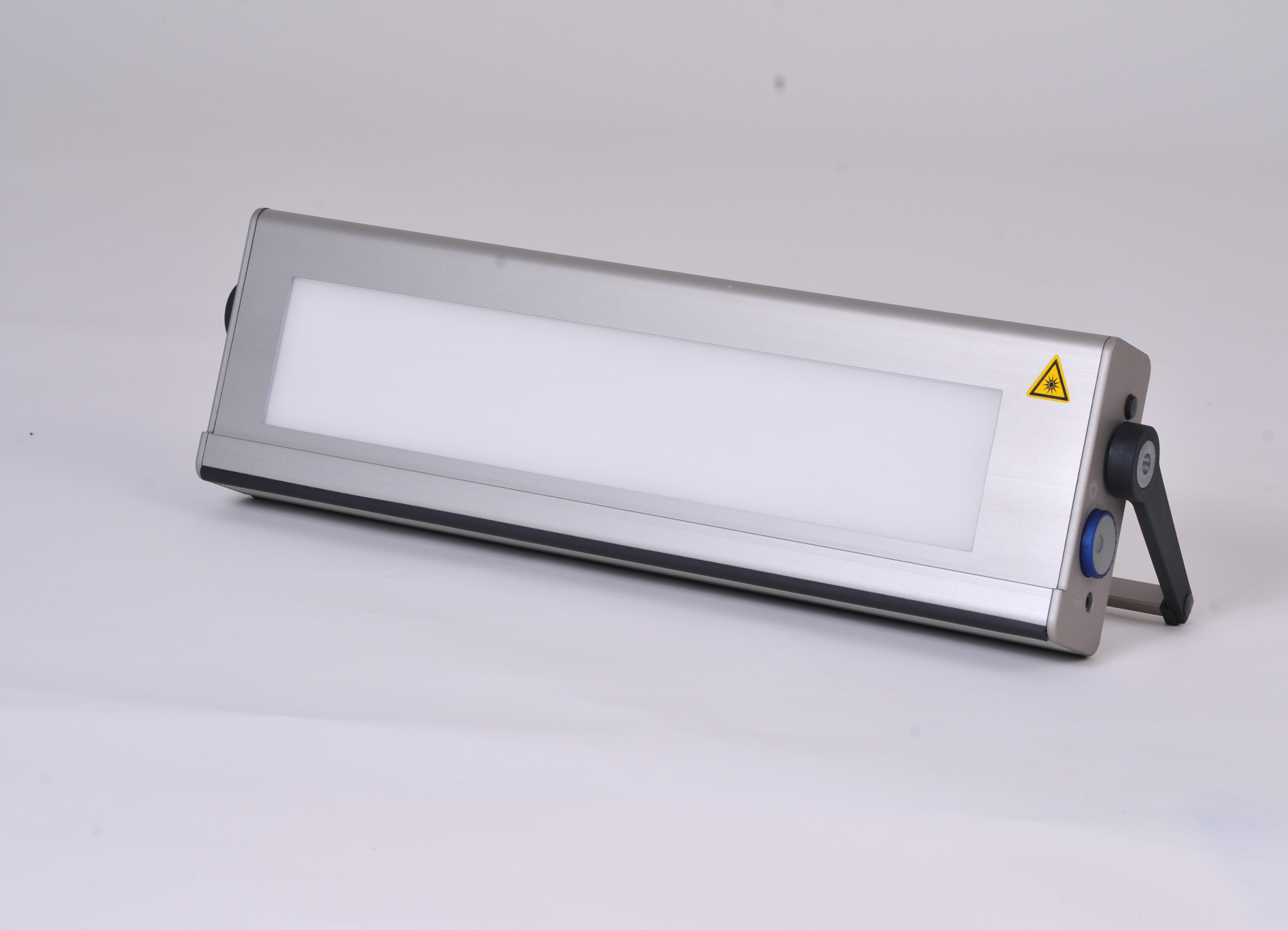

KOWOLUX M2

Viewing area:
Luminance/ Density:
Rated power:
Dimensions/ Weight:

80 x 450 mm for films 10×48 cm
160,000 cd/m² – D 4.20
140 W
552 x 62 x 150 mm – 4.5 kg + 0.8 kg power supply

13 40450

You can find accessories on the leaflet

leaflet German: KOWOLUX M
leaflet English: KOWOLUX M
